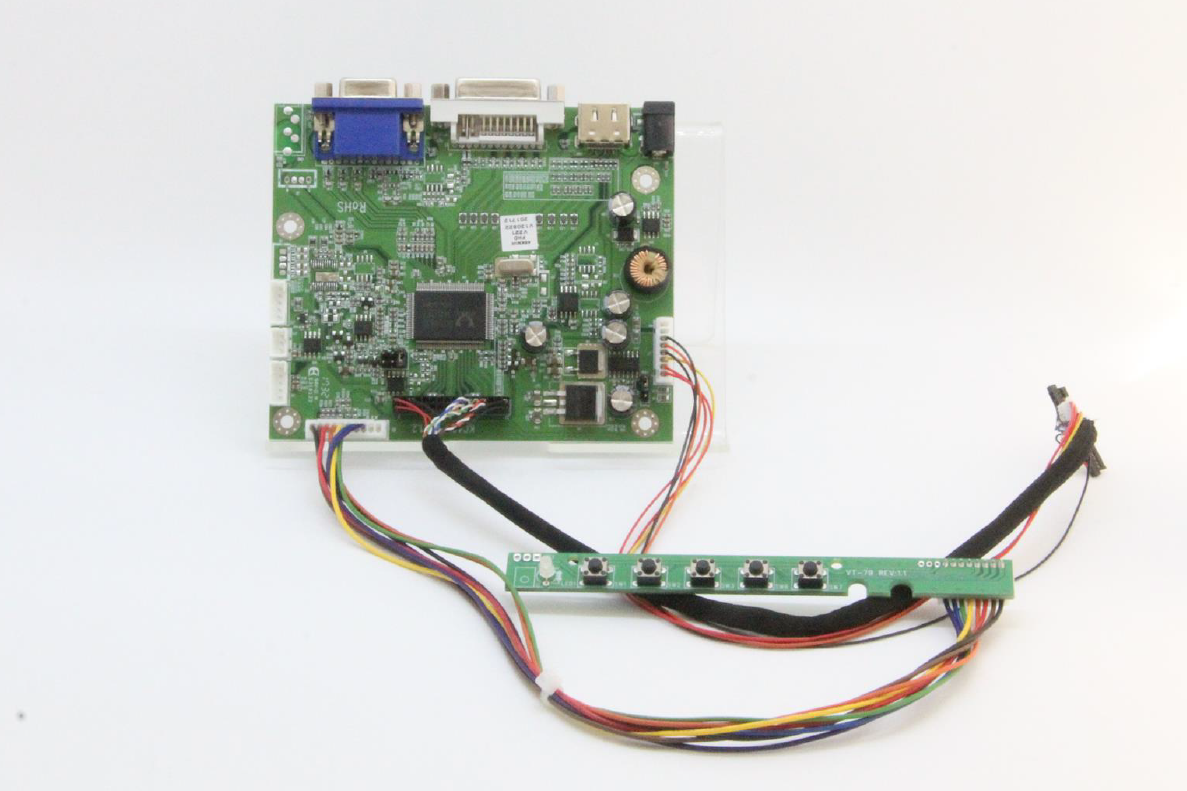

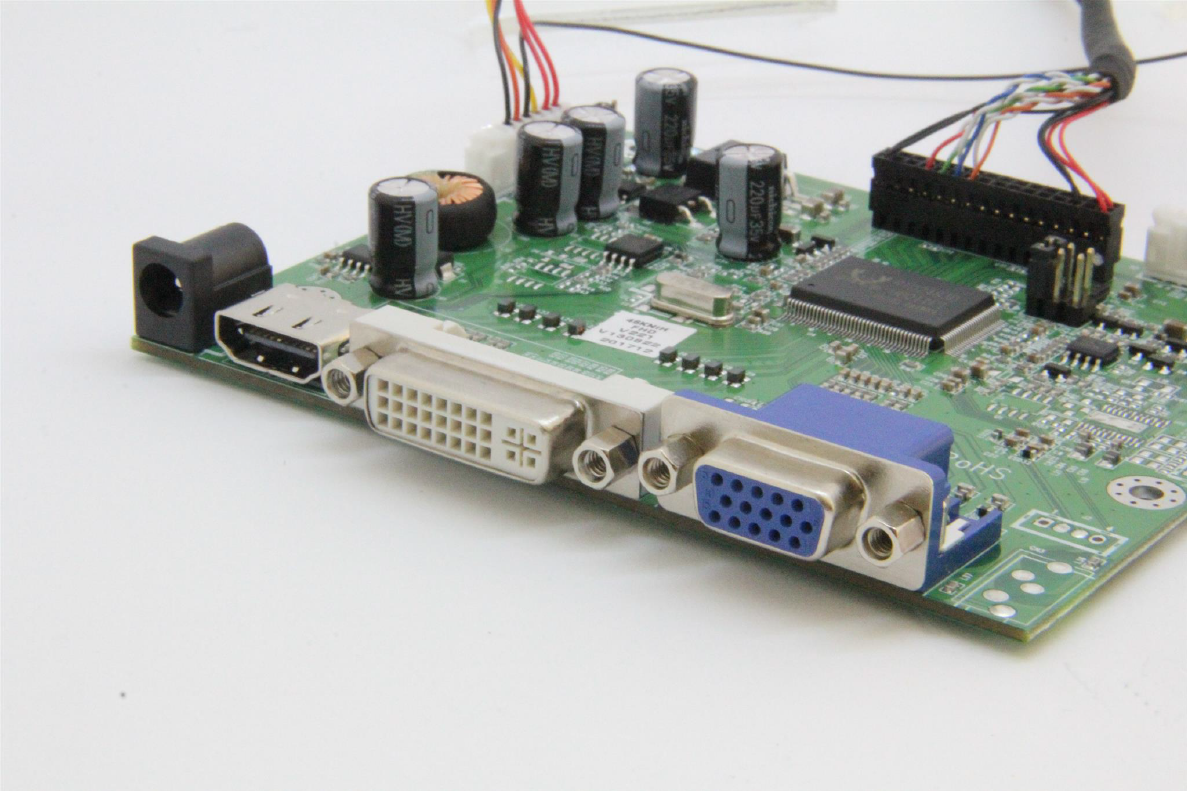

Display AD/Control/Driving Board



Features：

Compatible from VGA up to Full HDresolution(1920x1080) TFT LCD panel.

  • Supply single pixel(24bits)or dual pixel(48bits) digital RGB output.
  • Support Vertical refresh rate up to 75Hz for VGA~SXGA+(1400x1050) and 60Hz for higher resolution of VESA Standard Timing.
  • Support VGA analog standard input signal(15-pin D-Sub connectors).
  • Automatic detection of separate synchronize and composite synchronizes of VGA.
  • Support Digital Signal input (DVI)
  • Support High-Definition Multimedia Interface (HDMI) input .
  • RS232 support(Option)
  • Matching P/I power board  .
  • Operating  temperature : 0 °C to +50 °C .
  • Storage  temperature : -40 °C to +60 °C .
  • RoHS compliant .
